Preferred Programmatic Usage

For programmatic usage, the preferred approach is for users to directly consume the borehole class directly in your applications.

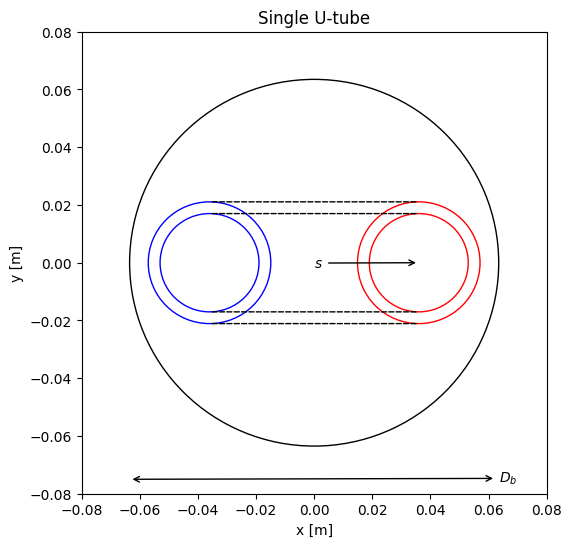

Example usage for a single u-tube borehole:

from bhr.borehole import Borehole

single_bhr = Borehole()
single_bhr.init_single_u_borehole(
    borehole_diameter=0.127,
    pipe_outer_diameter=0.032,
    pipe_dimension_ratio=11,
    length=200,
    shank_space=0.032,
    pipe_conductivity=0.4,
    grout_conductivity=1.6,
    soil_conductivity=2.0,
    fluid_type="PROPYLENEGLYCOL",
    fluid_concentration=0.2,
)

m_flow_borehole = 0.5 # kg/s
temp = 20 # celsius
print(f"{single_bhr.calc_bh_resist(m_flow_borehole, temp):0.5f}")

Note: Shank spacing s is reference from the borehole center to the tube center.

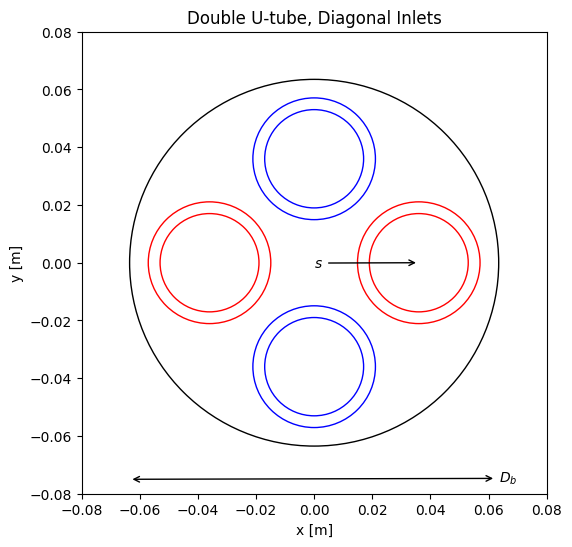

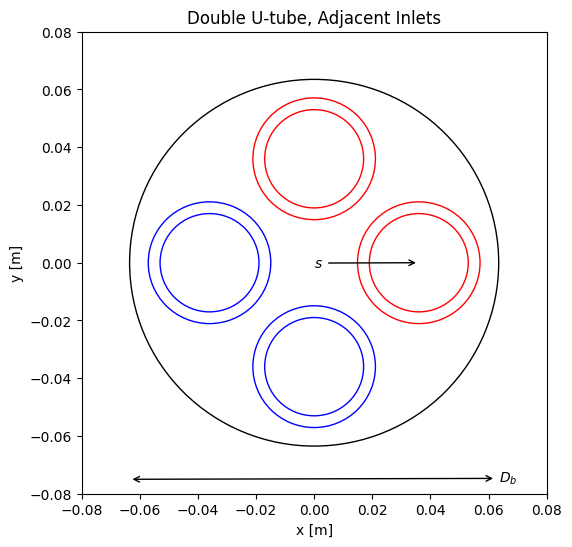

Example usage for double u-tube borehole:

from bhr.borehole import Borehole

double_bhr = Borehole()
double_bhr.init_double_u_borehole(
    borehole_diameter=0.127,
    pipe_outer_diameter=0.032,
    pipe_dimension_ratio=11,
    length=200,
    shank_space=0.032,
    pipe_conductivity=0.4,
    pipe_inlet_arrangement="DIAGONAL",
    grout_conductivity=1.6,
    soil_conductivity=2.0,
    fluid_type="PROPYLENEGLYCOL",
    fluid_concentration=0.2,
    boundary_condition="UNIFORM_BOREHOLE_WALL_TEMP",
)

m_flow_borehole = 0.5 # kg/s
temp = 20 # celsius
print(f"{double_bhr.calc_bh_resist(m_flow_borehole, temp):0.5f}")

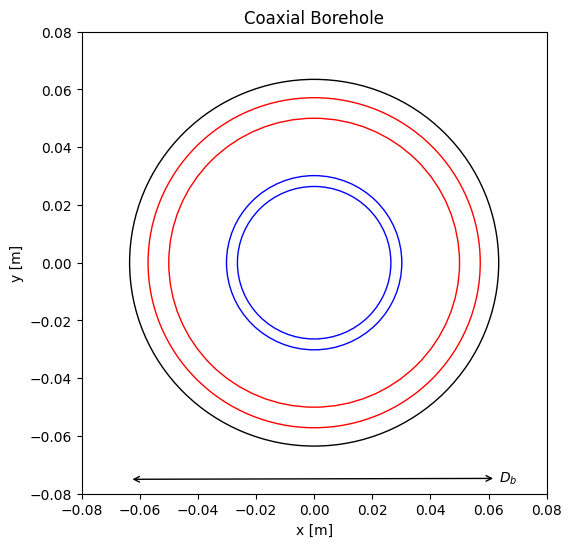

Example usage for coaxial borehole:

from bhr.borehole import Borehole

coaxial_bhr = Borehole()
coaxial_bhr.init_coaxial_borehole(
    borehole_diameter=0.127,
    outer_pipe_outer_diameter=0.114,
    outer_pipe_dimension_ratio=17,
    outer_pipe_conductivity=0.4,
    inner_pipe_outer_diameter=0.06,
    inner_pipe_dimension_ratio=11,
    inner_pipe_conductivity=0.4,
    length=200,
    grout_conductivity=1.6,
    soil_conductivity=2.0,
    fluid_type="PROPYLENEGLYCOL",
    fluid_concentration=0.2,
)

m_flow_borehole = 0.5 # kg/s
temp = 20 # celsius
print(f"{coaxial_bhr.calc_bh_resist(m_flow_borehole, temp):0.5f}")
